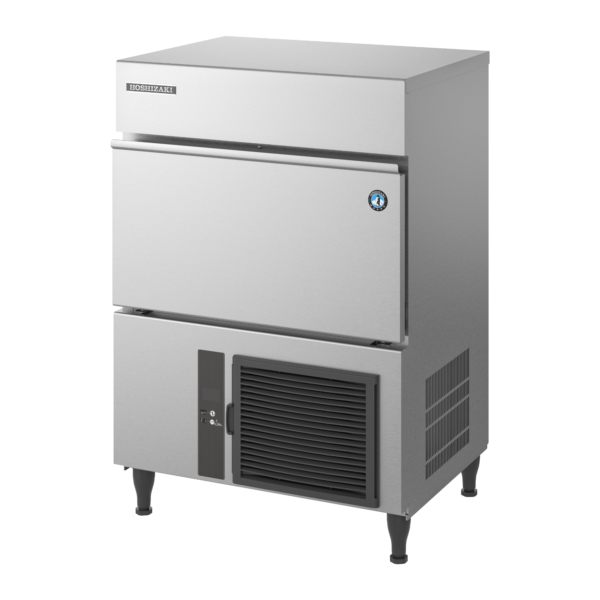

IM-65NE-HC Cuber, Self Contained

Ice makers

This Hoshizaki IM-65NE-HC is a self contained cube ice maker producing up to 62 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.

All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features Specifications Documentation

Key features

Sustainable

The IM-65NE-HC uses refrigerant R290. This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.

Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process. Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.

Smart Design

Like all Hoshizaki Ice makers, the IM-65NE-HC is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.

Perfect Fit

With outside dimensions W x D x H of 633 x 506 x 840 mm, the IM-65NE-HC is compact and is a perfect fit for small spaces.

Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.

Specifications

Specification	Value
Brand	Hoshizaki

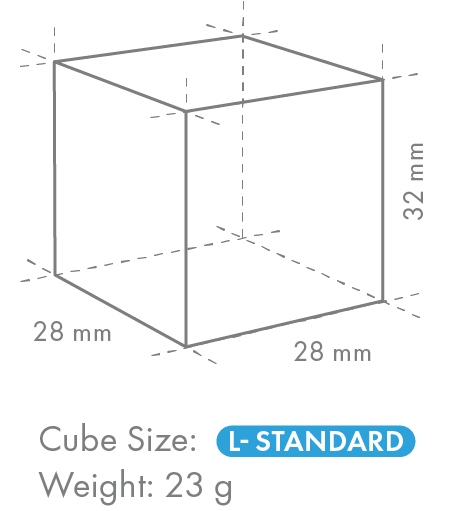

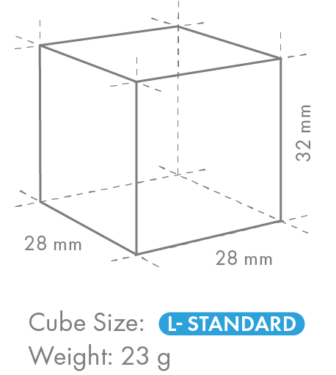

Ice type	Large cubes, Standard
Cooling system	Air Cooled
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Country of origin	UK
Dimensions legs	for legs add 90-125 mm
Corresponding water filters	4HC-H Single Water Filter, 4HC Replacement Cartridge
Accessories included	Installation kit, Scoop
Calago Text App Result	[[apptest4\|\|none\|,\|space_symbol\|]]
Calago Text App Result	[[apptest4\|\|none\|,\|space_symbol\|]]
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Disclaimer	Every effort has been made to ensure that the information contained in this spec sheet is accurate at the time of publishing. Hoshizaki Europe BV assumes no responsibility or liability for typographical errors or omissions or for any misinterpretation of the information within the publication and reserves the right to change without notice.
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Optional Extras	4HC-H water filtration, external drain pump
Model name	IM-65NE-HC
Item number	M066
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1
Extended spec sheets approved	1

Documentation

Documentation
bim/rfa files	Download
DWG files	Download
Declaration of conformity	Download
Dimensional drawings (main)	Download
IM_65NE_HC.pdf	Download
Drain_Pump_Installation.pdf	Download
Instruction manual	Download
Spare parts / parts list	Download
Service manual	Download
Spec sheet	Download
Spec sheet	Download
