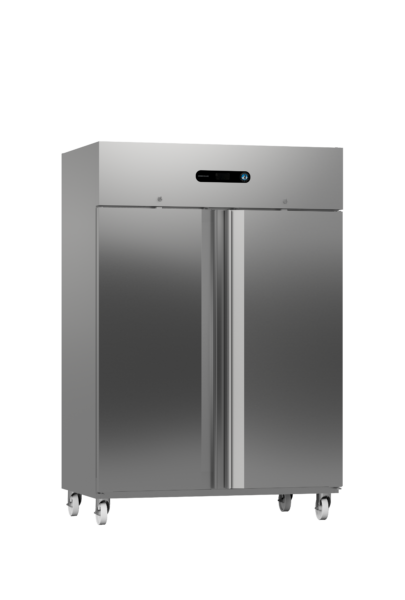

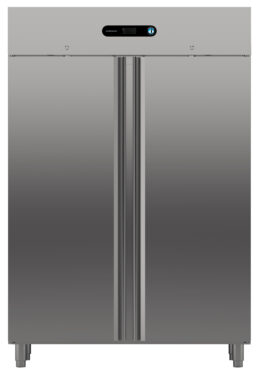

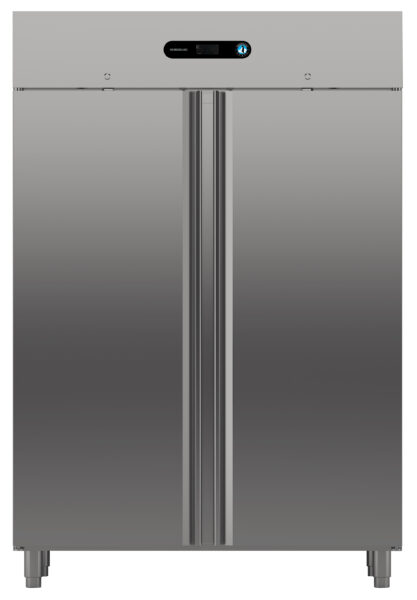

SUF-135EG-R-C 2-Door Freezer Cabinet, HC

Freezers
D

Please be informed that the SUF-135EG-R-C  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Advance 140 will be available instead. You can read more about the Advance https://hoshizaki-europe.com/advance/ or get in contact with your local branch to receive the latest information.

Get quote View spec sheet

Key features

Sustainable

The refrigerant used in all Snowflake GII+ models is R290. This agent is a natural gas that enhances the performance of the refrigerated counter and has, compared to other refrigerants, a minimal ozone depletion potential.



Material

Both interior and exterior of the refrigerated cabinet are built of  nickel-free (non-allergic) stainless steel, which is among the best choices for hygienic and food-safe cooking environments.



Smart Use of Space

Making the best possible use of limited space conditions is a common challenge in kitchen design. The evaporator is positioned on top of the cabinet,  so valuable space inside the cabinet can be used for storage.

The condensation tray is not positioned on the back of the cabinet, but on top of it. This clever design allows you to move the cabinet closer to the back wall which gives you an additional 5 cm of your valuable operational area.



Energy Efficiency

The double insulated and extra wide door gaskets help to keep the cold air inside the cabinet, which is an important factor for device efficiency.  The Ecodesign AEC Energy consumption is 3869.



Convenience and Ergonomics

The SUF-135EG-R-C has self-closing doors, which close automatically when open in an angle of less than 90 degrees. Additionally, they offer maximum flexibility as they are fully reversible. an anti-tilt mechanism with molded liners helps with the safer container and rooster handling. The GN shelf size of the SUF-135EG-R-C is [2_1_gn_deep]. With sound levels of 58.0000 dB(A) the SUF-135EG-R-C adds to a comfortable work environment for your staff.



Easy Cleaning & Maintenance

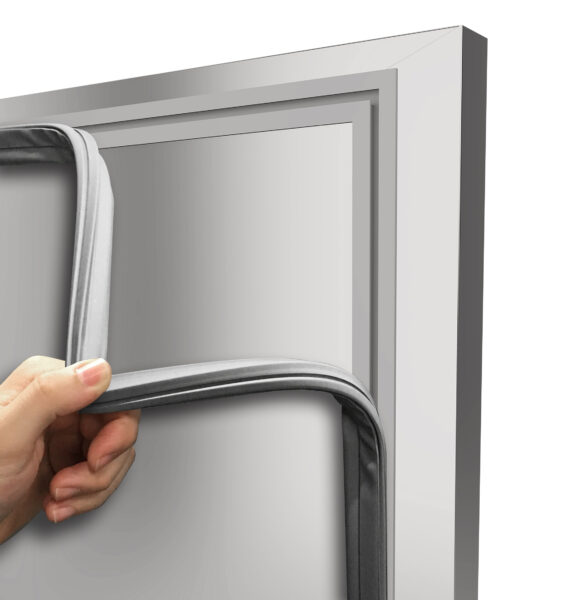

The Snowflake GII+  refrigeration system uses a mono-block construction that is removable for easier maintenance and repair. The removable gaskets make sure that can clean the device thoroughly. This and other thoughtful extras, such as the cleaning-free condenser, are designed to reduce kitchen cleaning times whilst storing foods protectively in the best possible way.

Specifications

Specification Value
Brand Hoshizaki
Door Type Solid Door
Exterior Stainless Steel
Interior Stainless
Legs / Castors H = 127 mm (C2)
Climate class 5 (max. ambient 40°C w/ 40% RH)
Insulation type Polyurethane
Energy efficiency class D
Model name SUF-135EG-R-C
Maximum number of shelves 22 x 2, distance of 60 mm
Item number 878010903
Equipped with Right hand hinged reversible doors, automatic door closing, 6 grey shelves, LED lighting
Number of shelves 6.0000

Documentation

Documentation
DWG files Download
Declaration of conformity Download
Dimensional drawings (main) Download
EU_Merged_SUF_135EG.pdf Download
Instruction manual Download
Service manual Download
Spare parts / parts list Download
SUF_65_135_EG_Wiring_Diagram.pdf Download
